GOODWAY RAM-5 Chiller Tube Cleaner, Speed-Feed/Variable Speed • RAM-5DC-ID-60
Product Features
- Powerful variable shaft rotation up to 862.5 RPM
- Unique Speed Feed Gun Technology automatically loads and reverses shafts for faster tube cleaning
- Speed-Feed Gun rate: Up to 3′ (0.9m) per second
- Speed-Feed Gun push/pull force: 50 lbs (222 N)
- For tubes 1/4″ to 1″ I.D.
The RAM-5 just got faster and easier to use with our latest innovation, the Reverse Stop Assembly Speed-Feed gun. The updated gun combines our speed-feed technology to fire the shaft quickly into the tube from a pull of the trigger with the new Reverse Stop Assembly that automatically detects when the brush is retracted from the tube and stops it in the optimal position.
GOODWAY RAM-5 Chiller Tube Cleaner RAM-5DC-ID-60 Product Details:
GOODWAY RAM-5 Chiller Tube Cleaner, Speed-Feed/Variable Speed • RAM-5DC-ID-60 Product Overview:
The RAM-5 just got faster and easier to use with our latest innovation, the Reverse Stop Assembly Speed-Feed gun. The updated gun combines our speed-feed technology to fire the shaft quickly into the tube from a pull of the trigger with the new Reverse Stop Assembly that automatically detects when the brush is retracted from the tube and stops it in the optimal position.
Go from tube to tube with lightning speed and precision.
Plus, it allows you to dial in the optimal brush rotation speed and shaft feed rate for better cleaning of straight or enhanced tubes. And, its quick-connect shaft and brush connections provide fast and easy changes.
These innovative features, plus its integrated water flush, combine to clean tubes up to 4X faster than traditional tube cleaning methods.
With years of proven performance, a sleek modern design, industrial-strength construction, improved portability, intuitive controls, and unmatched speed, it’s no wonder the RAM-5 is the choice for contractors and facility managers with large tube bundles.
For cleaning tubes 1/4″ to 1″ I.D.
The NEWS 2023 Dealer Design Awards Winner of Gold for HVAC Commercial Equipment.
Product Features:
- Larger wheels for improved mobility
- Sleek, modern design
- Intuitive easy-to-use controls
- Variable speed up to 3′ (0.9m) per second – reduced labor
- Simple to operate – minimal training required
- Stainless steel construction – long life
- Interchangeable cleaning tools – versatile
- Large wheels – easy to move
- Simultaneous water flush – removes deposits
- Trigger controlled operation – increased productivity
- Flexible Shaft speed: Up to 862.5 rpm
- Reverse Stop Assembly Speed-Feed Gun rate: Up to 3′ (0.9m) per second
- Reverse Stop Assembly Speed-Feed Gun push/pull force: 50 lbs (222 N)
- Motor power: 1 HP (0.6 kW)
- Input power: Standard: 12 amps, 115 V, 60 Hz AC (Optional: 12 amps, 115 V, 50 Hz; 6 amps, 230 V, 60 Hz; or 6 amps, 230 V, 50 Hz)
- Dimensions: (excluding gun and guide hose): 37″ (940mm) high x 20″ (510mm) wide x 17″ (430mm) deep ·
- Weight: 75 lbs (34 kg) net dry
- RAM-5 is CE certified

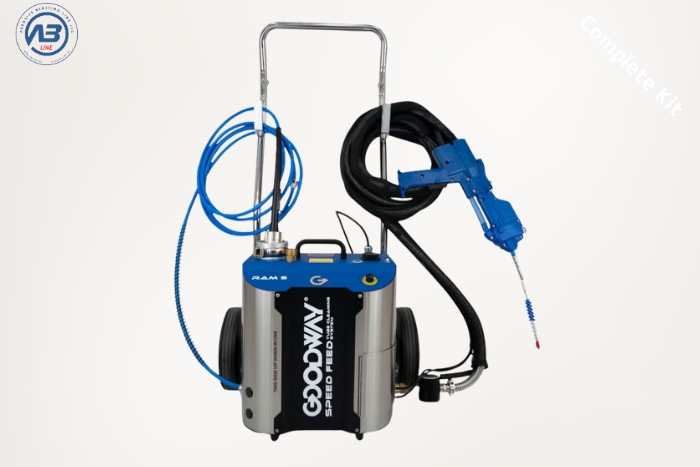

GOODWAY RAM-5 Chiller Tube Cleaner RAM-5DC-ID-60 Includes:
RAM-5 Automatic Chiller Tube Cleaner includes:
- RAM-5 Speed-Feed Tube Cleaner 1HP (0.6 kW)
- Reverse Stop Assembly Speed-feed gun 15′ (4.6m)
- Guide hose
- One set of shaft feeder gears
- Mobile dolly with tool storage box
- Foot-switch.
Note: Shafts, brushes, and other accessories sold separately.
Get in touch with us for more details or inquiries.:
-
- info@abline.me
+966 55 942 0153
GOODWAY Cleaning Machines
Goodway Technologies is a leading provider of industrial maintenance tools and products for a wide range of applications worldwide. From heat exchanger tube cleaning to duct cleaning, HVAC coil cleaning, explosion-proof industrial vacuums, and more, Goodway Technologies delivers reliable solutions for maintaining and optimizing industrial systems.
ABLINE is the sole distributor of Goodway Cleaning Products in the Middle Eastern region, ensuring easy access to these high-quality solutions.
With a strong focus on design and manufacturing excellence, these tools help achieve exceptional results, reduce labor costs, and improve system efficiency. The product range serves industries including HVAC and facilities, power plants, manufacturing, and food and beverage.
Explore standard offerings or contact us for customized solutions tailored to your maintenance needs.
