GOODWAY ScaleBreak PulseFlo, Descaling Pump System, 15 GPM, w/15 Gal. Tank • GDS-120
Product Features
The GDS-120 is purpose-built for light-to-medium scale removal in systems under 60 gallons, making it ideal for:
- Small shell-and-tube heat exchangers
- Brazed plate heat exchangers (BPHEs)
- Compact process loops and closed systems
- Molds & Extruders
- TCUs/ Thermolators
GOODWAY ScaleBreak PulseFlo, Descaling Pump System, 15 GPM, w/15 Gal. Tank • GDS-120

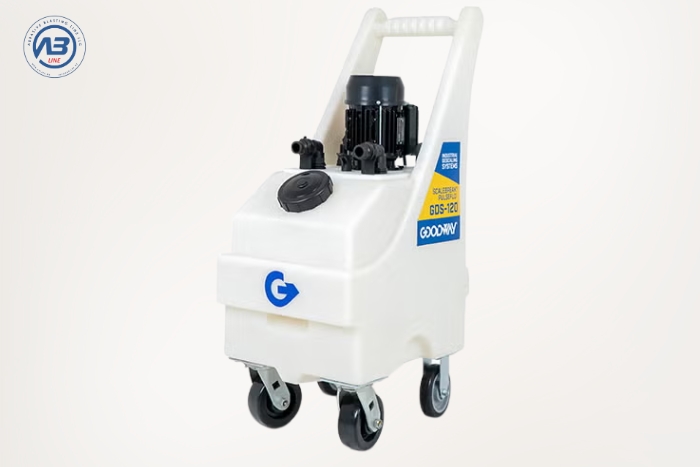

GOODWAY ScaleBreak PulseFlo, Descaling Pump System, 15 GPM, w/15 Gal. Tank • GDS-120 Product Overview:
Introducing the new ScaleBreak PulseFlo™ GDS-120, which delivers a powerful, easy-to-use solution for removing scale from heat exchangers and small fluid systems. Designed for clean-in-place (CIP) descaling, this compact system helps maintenance teams restore flow, improve heat transfer, and reduce downtime without disassembly.
The ScaleBreak PulseFlo™ GDS-120 combines efficiency and ease of use with its integrated flow reversal valve, allowing operators to instantly change flow direction without disconnecting hoses or stopping circulation, helping break up stubborn scale and clear blockages faster. The built-in tank manages foam and CO₂ off-gassing to minimize air pockets, ensuring consistent chemical contact and more effective descaling performance. An integrated freshwater port simplifies rinsing by enabling quick switching between circulation and discharge modes, reducing handling time, and improving operator safety.
Built with durable, chemical-resistant polyethylene and industrial-grade acid-resistant components, the GDS-120 is engineered to handle demanding descaling applications while remaining lightweight and easy to position in tight spaces.
Ideal Applications for This 15 GPM Descaling Pump System
The GDS-120 is purpose-built for light-to-medium scale removal in systems under 60 gallons, making it ideal for:
- Small shell-and-tube heat exchangers
- Brazed plate heat exchangers (BPHEs)
- Compact process loops and closed systems
- Molds & Extruders
- TCUs/ Thermolators
Note: Check local, state, and federal rules for the disposal of any used chemical/water in your area.
What’s Included
ScaleBreak PulseFlo GDS-120 includes:
- GDS-120 Descaling Pump System w/ 15-gallon (57 liter) tank
- Three (3) 3/4″ (19mm) diameter 10′ (3 m) long circulation hoses
Product Features:
- Compact CIP system – Clean in place without teardown to reduce downtime and labor
- Acid-proof pump and fittings – Built to handle harsh descaling chemicals for long-lasting performance
- Innovative flow reversal valve – Break up scale faster and improve cleaning effectiveness without disconnecting hoses
- Compact design – Easy to transport, position, and store in tight mechanical spaces
- 10-gallon reservoir tank – Ideal capacity for small systems with efficient chemical use
- Venting cap for closed systems – Safely manages pressure and off-gassing during descaling
- CE certified – Meets international safety and quality standards
- Single-knob fresh-water-flush control – Faster, simpler operation with less risk of operator error
- Low-position rear drain – Easier, safer draining with reduced splash risk and less physical strain
- Drain valve with hose connection – Controlled, mess-free draining for improved safety and environmental handling
- Camlock hose connections – Quick, secure, tool-free setup to reduce downtime and frustration
- Four-wheel design – Enhanced stability and maneuverability for easier transport in tight spaces
- Integrated handle notches – Built-in hose storage for faster setup and improved jobsite organization
- Molded base lift points – Safer, more ergonomic lifting and repositioning of the unit
GDS-120 Specifications
- Motor Power: 1.34 HP (1 kW) / Optional 3/4 HP (0,6 kW)
- Input Power: 12 amps, 115 V, 60 Hz / Optional: 4 amps 230V, 50Hz)
- Flow Rate: 15 GPM (57 LPM) / Optional 12 GPM (45 LPM)
- Pump: Centrifugal
- Tank Capacity: 15 gallons
- Dimensions: 17″ deep x 15″ wide x 27″ high (55.9 cm deep x 39.4 cm wide x 86.4 cm high)
- Weight: 55 lbs net dry
Get in touch with us for more details or inquiries.:
-
- info@abline.me
+966 55 942 0153
GOODWAY Cleaning Machines
Goodway Technologies is a leading provider of industrial maintenance tools and products for a wide range of applications worldwide. From heat exchanger tube cleaning to duct cleaning, HVAC coil cleaning, explosion-proof industrial vacuums, and more, Goodway Technologies delivers reliable solutions for maintaining and optimizing industrial systems.
ABLINE is the sole distributor of Goodway Cleaning Products in the Middle Eastern region, ensuring easy access to these high-quality solutions.
With a strong focus on design and manufacturing excellence, these tools help achieve exceptional results, reduce labor costs, and improve system efficiency. The product range serves industries including HVAC and facilities, power plants, manufacturing, and food and beverage.
Explore standard offerings or contact us for customized solutions tailored to your maintenance needs.
